Quick View Leaflet

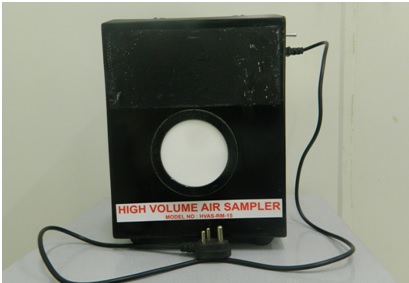

The portable high volume air sampler is light-weight and made of Fiber Reinforced Plastic (FRP). It is a mains-operated instrument. The air sampler has an inbuilt embedded controller to start, stop, log and to calculate the total volume of air sampled. The ambient air is sucked at a desired flow rate up to 2800 lpm and made to pass through a glass fiber filter paper for a given duration of time.
Salient Features
- Wireless Remote for safer operation
- On/off Timer
- GPS / Location
- Flow Controller
- Data Logging
Applications
- Can be used by pollution control boards for collection of suspended particulate matter in monitoring environmental pollution.
- Can be used by industries discharging particulate effluents, for the collection of samples for the purpose of monitoring.
- Can be used in nuclear installations for the collection of air samples to estimate air-borne radioactivity levels.
Detailed Technical Brochure
Portable high volume air samplers are employed to collect the airborne particulates in a glass fiber filter paper. After collection, the filter paper is analysed for required sample of interest. An indigenous portable high volume air sampler has been designed, fabricated and tested by, Indira Gandhi Centre for Atomic Research, DAE.
The portable high volume air sampler is light-weight and made of Fiber Reinforced Plastic (FRP). It is a mains-operated instrument. The air sampler has an inbuilt embedded controller to start, stop, log and to calculate the total volume of air sampled. The ambient air is sucked at a desired flow rate up to 2800 lpm and made to pass through a glass fiber filter paper for a given duration of time.
Features
- Wireless Remote for safer operation
- On/off Timer
- GPS / Location
- Flow Controller
- Data Logging
Specifications
- Indoor or outdoor sampling of airborne particulates 0.1 micron and above.
- Indoor or outdoor sampling of airborne particulates
- Flow rate range: up to 2800 lpm (adjustable)
- Can be operated up to 60 minutes continuously
- Portable and light weight (approximately 3 kg.)
- Built-in rotometer for instantaneous flow reading
- 4" diameter filter holder assembly
- Fitted with flow rate adjuster
- Mains operated (240 V ±10%, 50 Hz± 3%)
- Material of construction: aluminum alloy and carbon steel
- Rotary impellers made of aluminum sheets
- Motor: Single phase, 230 Volt AC, 22000 RPM at no load and 28000 rpm at full load (4" glass fiber filter paper)
Applications
- Can be used by pollution control boards for collection of suspended particulate matter in monitoring environmental pollution.
- Can be used by industries discharging particulate effluents, for the collection of samples for the purpose of monitoring.
- Can be used in nuclear installations in DAE for the collection of air samples to estimate air-borne radioactivity levels.
Infrastructure Requirements
- CNC turning centers (4000 rpm, spindle motor power: 5.5 kW)
- HMT auto lathe (2000 rpm, spindle motor power: 8.5 kW)
- Auto drilling/tapping machines (4000 rpm, 5 HP motor, drilling dia: 28 mm)
- Hydraulic power press (0.5 t capacity)
- Air compressors (1225 rpm, 10 kg/cm2 pressure, 3 HP motor, single stage)
- Toggle press: 1 ton
Test Equipments
- Profile Projector
- Digital Height Gauge
- Digital & Analog venire Gauge
- Digital & Analog Micrometer
- Calibration Orifice and Manometer
- Slip Gauges
- Dial Gauges
- Plug Gauges
- Thread Gauges
Skilled Manpower
- Unit In charge (1 No.) - (BE / Diploma in Mechanical / Electrical Engineering)
- CNC Operators (4 Nos.) - (Diploma /ITI in Mechanical Engineering)
- Drilling & Tapping Operators ( 6 Nos.) - Diploma /ITI in Mechanical Engineering
- Electrician (2 Nos.) - Diploma /ITI in Electrical Engineering
- Assembly & testing In charge (1 No.) - Diploma /ITI in Electrical Engineering
- Quality Check /Inspection In charge (1 No.)- Diploma /certificate in Quality Control Courses
Application Procedure for Transfer of Technology from IGCAR
Who can apply
Interested parties with Engineering & Scientific knowledge, good financial background and adequate experience of products manufacturing & fabrication with technical capability in the area of interested technology and having or interested in setting –up facilities for production would be preferred.
How to apply
Send your Technology Transfer Application form duly filled and signed along with a Demand Draft/Bankers cheque of Rs. 500/- (for Indian entities) or US $50/- (for foreign entities) drawn in favour of “Accounts Officer, IGCAR” as application processing fee on following address:
Head, Incubation Centre- IGCAR,
Indira Gandhi Centre for Atomic Research,
Kalpakkam, 603 102, India.
Note:Applications without processing fee as applicable above of Rs. 500/- or US $50/- for each technology will not be considered.
