IGCAR : Remotely Operated Self- Locking Fixture for Wall Mounted Equipment for Contaminated Enclosures

Overview

The fixture is remotely operable for mounting fittings inside enclosures with restricted access.
The mechanism is very simple, with no maintainable parts on the stationary unit, easy to operate and maintain remotely. It is a standalone fitting and can be installed from outside the enclosure and without the need of manipulators or any other equipment. Equipped with self-locking feature and no separate mechanism is required to secure the gadget.

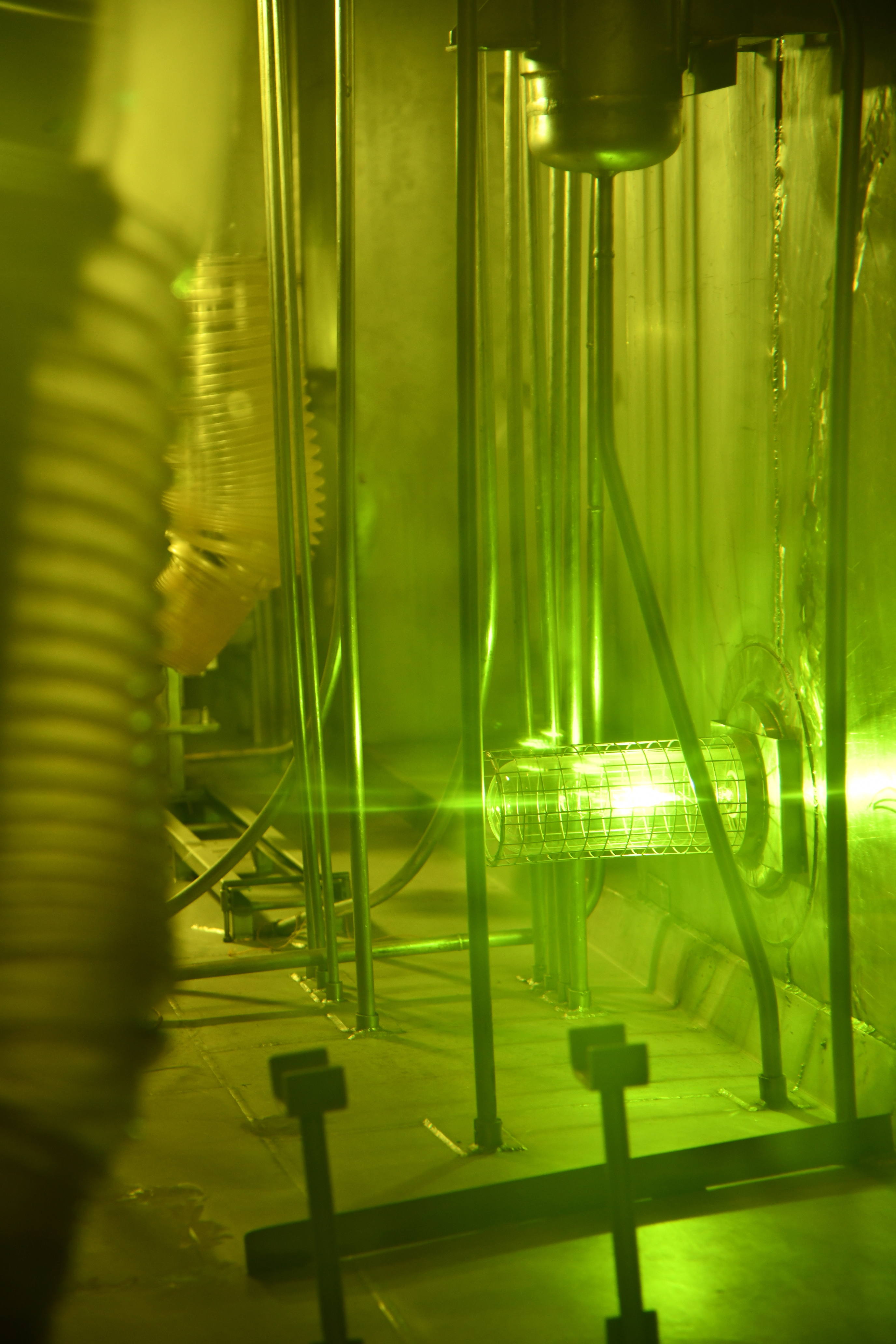

Glass Dome Fitted Inside 1.8 Mtr. Thik Wall Using the Fixture

Parts of Fixture with Glass Dome for Installation

Features

Practically no operation cost and negligible maintenance cost. Fixture can be mounted within a couple of minutes with a semi-skilled operator.
Adaptable to chambers with varying wall thickness and offers helium leak tightness.
Installation requires no viewing window & hence illumination inside the chamber.
Helium Leak tested at 1 Bar using sniffer method.

Quick View Leaflet

A remotely operated self-locking fixture for wall mounted equipment for enclosures with restricted access is a fixture designed with two types of securing arrangement, one meant for permanent engagement with the wall and the other is meant for the transporting the intended instrument / gadget. The mechanism features installation & removal of the instrument / gadget remotely from other side of a partition wall as thick as 2 mtr. or even higher and more importantly the entire operation can be carried out without viewing arrangement, hence no need for in-cell illumination during installation, while the dome fixture will be engaged with the wall in a leak tight manner.

Salient Features of the System

The mechanism is very simple, compact, easy to fabricate, highly robust, easy to install, operate and maintain remotely.
Capable of installation with self-locking of the instruments without the need for separate expensive and maintenance prone manipulators or other such equipment.
Adaptable to chambers with varying wall thickness.
Helium leak tested up to 1 Bar
Ergonomically designed to support blind fold installation in a very short time.

Detailed Technical Brochure

Technical Specifications

Sr.No.	Specification	Value
1	Stationary Unit	Stainless steel or other suitable material as per end use
2	Mobile Unit	Stainless steel or other suitable material as per end use
3	Guide Rod	Carbon steel or other suitable material as per end use
4	Stationary Unit "O" Ring	Material: EPDM (100 % pure) Hardness: Shore A 75 ± 5
5	Fitting Flange Gasket	Material: EPDM (100 % pure) Hardness: Shore A 50 ± 5
6	Fasteners	Stainless steel or other suitable material as per end use

Application Procedure for Transfer of Technology from IGCAR

Who can apply

Interested parties with Engineering & Scientific knowledge, good financial background and adequate experience of products manufacturing & fabrication with technical capability in the area of interested technology and having or interested in setting –up facilities for production would be preferred.

How to apply

Send your Technology Transfer Application form duly filled and signed along with a Demand Draft/Bankers cheque of Rs. 500/- (for Indian entities) or US $50/- (for foreign entities) drawn in favour of “Accounts Officer, IGCAR” as application processing fee on following address:

Head, Incubation Centre- IGCAR,
Indira Gandhi Centre for Atomic Research,
Kalpakkam, 603 102, India.

Note:Applications without processing fee as applicable above of Rs. 500/- or US $50/- for each technology will not be considered.
Click here for Technology Transfer Application Form
