Overview

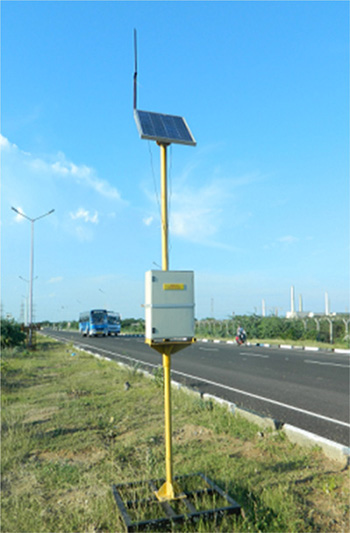

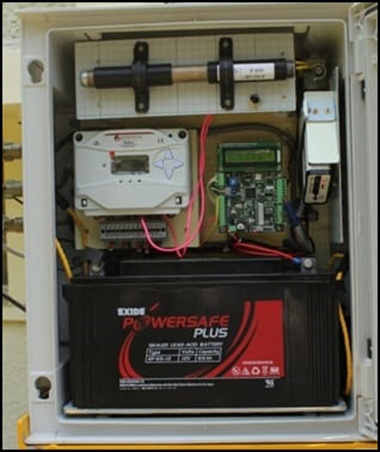

Autonomous Gamma Dose Logger is a radiation monitor to measure environmental radiation in the range from 100 nGy/hr to 5Gy/hr. The system will transmit the data through wireless communication and backs up the data in a portable data logger. The system is powered by solar power system with battery backup. The radiation monitor is installed at the site with a mechanical structure. The system can be used for both routine and emergency radiation field monitoring purposes and can be safely maintained. This instrument is used in nuclear installations.

Quick View Leaflet

Autonomous Gamma Dose Logger is a radiation monitor to measure environmental radiation in the range from 100 nGy/hr to 5Gy/hr. The system will transmit the data through wireless communication and backs up the data in a portable data logger. The system is powered by solar power system with battery backup. The radiation monitor is installed at the site with a mechanical structure. The system can be used for both routine and emergency radiation field monitoring purposes and can be safely maintained.

Salient Features

• Sampling time: 1/10 min.
• Zigbee wireless for communication.
• GPS interfaced for time stamp.
• Encrypted data transfer for security.
• Local data storage for redundancy.
• Range : 100 nGy/hr to 5 Gy/hr.

Advantages

• Measurement of environmental radiation

Areas of Application

• Nuclear installations

Detailed Technical Brochure

Autonomous Gamma Dose Logger is a radiation monitor to measure environmental radiation in the range from 100 nGy/hr to 5Gy/hr. The system will transmit the data through wireless communication and backs up the data in a portable data logger. The system is powered by solar power system with battery backup. The radiation monitor is installed at the site with a mechanical structure. The system can be used for both routine and emergency radiation field monitoring purposes and can be safely maintained.

Process

• The monitor is custom designed with the required sampling frequency and can be deployed in any remote place. Can be rapidly deployable & easily operable, with encryption of data transfer to central server.
• This equipment is indispensable to any nuclear installation.
• This may also be very useful for any nuclear power plant radiation safety related measurement and data transfer.
• The facility required for the fabrication is standard.
• Expertise available for the design and fabrication.

Salient Feature

• Sampling time: 1/10 min
• Zigbee wireless for communication
• GPS interfaced for time stamp
• Encrypted data transfer for security
• Local data storage for redundancy
• Range : 100 nGy/hr to 5 Gy/hr

Advantages

• Measurement of environmental radiation

Areas of Application

• Nuclear installations

Facilities Required

• Minimum of 25 X 25 feet workshop
• Testing / calibration room of 10 x 10 feet.
• The calibration facility should be a properly shielded facility and licensees should have proper certification and training of handling source and conducting calibration.
• 3-phase power supply
• Facility or tie-up for fabrication of printed circuit boards
• Facility for populating electronic components and electrical systems
• Computer with required software for testing wireless and microcontroller systems.
• Test equipment for testing electronic components and systems

Application Procedure for Transfer of Technology from IGCAR

Who can apply

Interested parties with Engineering & Scientific knowledge, good financial background and adequate experience of products manufacturing & fabrication with technical capability in the area of interested technology and having or interested in setting –up facilities for production would be preferred.

How to apply

Send your Technology Transfer Application form duly filled and signed along with a Demand Draft/Bankers cheque of Rs. 500/- (for Indian entities) or US $50/- (for foreign entities) drawn in favour of “Accounts Officer, IGCAR”  as application processing fee on following address:

Head, Incubation Centre- IGCAR,
Indira Gandhi Centre for Atomic Research,
Kalpakkam, 603 102, India.

Note:Applications without processing fee as applicable above of Rs. 500/- or US $50/- for each technology will not be considered.
Click here for Technology Transfer Application Form
